ENGELNORM®
^{ELECTRIC AIR HEATER}^{Type L 1 - L 20 / Universal}

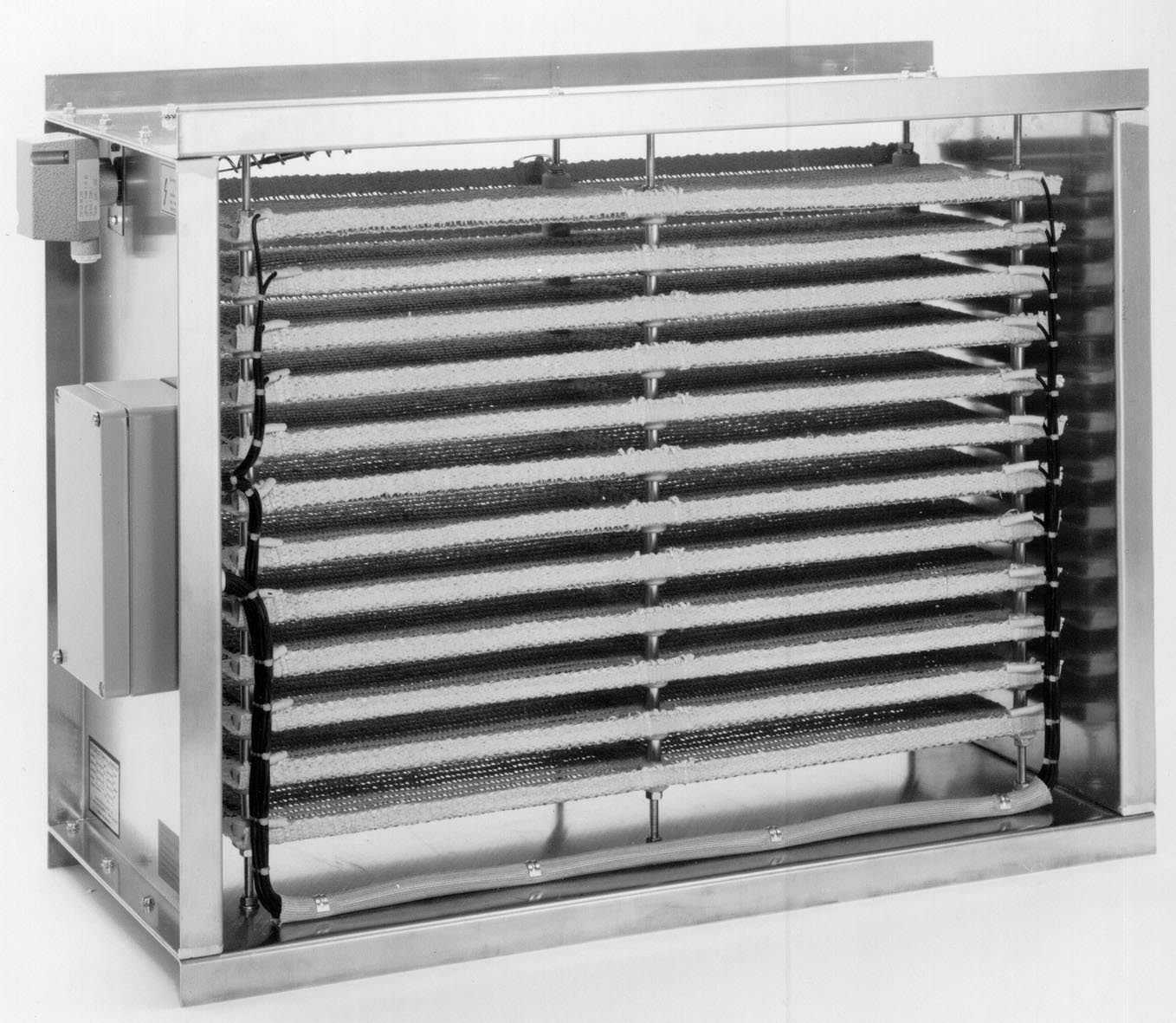

Operating voltage:	- precise control	fig. L 16 with ZB 121 pdf
230 VAC	- rapid heating
Circuit: Ph - N	- economical
	- reliable
230 / 400 V three-phase AC	- approved
Circuit: Δ / Y
	large power range
Position: universal	large-volumed design


Type	Output kW	Switch stages norm./max 3~ / 1~	Number of heating- grids	Output per heating- grid kW	B 1 mm	H 1 mm	T mm	Flange mm	Duct Aluminium mm	Weight approx. kg
L 1	0.75	1/3	3	0.25	360	200	250	30	1.5	3
L 2	1	1/3	3	0.33	360	200	250	30	1.5	3
L 3	1.5	1/3	3	0.50	360	200	250	30	1.5	3
L 4	2	2/6	3	0.33	360	280	250	30	1.5	4
L 5	3	2/6	6	0.50	360	280	250	30	1.5	4
L 6	4	2/6	6	0.66	360	280	330	30	1.5	5
L 7	5	2/6	6	0.83	360	280	330	30	1.5	5
L 8	6	2/6	6	1.00	360	280	330	30	1.5	5
L 9	9	3/9	9	1.00	460	380	260	30	1.5	6.5
L 10	12	3/9	9	1.33	460	380	260	30	1.5	6.5
L 11	15	3/9	9	1.66	460	380	350	30	2.0	9
L 12	18	3/9	9	2.00	460	380	350	30	2.0	9
L 13	20	3/9	9	2.22	540	420	350	30	2.0	12
L 14	24	3/9	9	2.66	540	420	400	30	2.0	15
L 15	30	3/9	9	3.33	540	420	450	30	2.5	17
L 16	40	4/12	12	3.33	800	600	350	35	2.5	24
L 17	50	6/18	18	2.77	800	800	350	35	2.5	27
L 18	60	6/18	18	3.33	800	800	350	35	2.5	30
L 19	80	8/24	24	3.33	1000	1000	350	35	2.5	35
L 20	100	10/30	30	3.33	1200	1200	350	35	3.0	57

Designed for the market´s needs

Safety-tested in compliance with
Low-Voltage Guideline (2006/95/EC)
EMC Guideline (2004/108/EC)

Modern and advanced
Developed for air condition technology

For heating flowing, dust-free air and non-combustible, non-aggressive and non-explosive gasses up to 373 K (+ 100°C) (standard version) or up to 473 K (+ 200°C)(optional version).
For all areas, as a pre-heater, after-heater, zone after-heater, duct heater, series unit installation, in standard or optional version (different voltages, dimensions, capacity e.g.).
We offer you an advantageous and user-friendly “storage programme“ as well as solutions made to order.

crucial advantages
- optimal quality at a price suited to output
- delivery ex store
- manufactured in accordance with VDE regulations
- low surface temperature thanks to large-surface
- non-glowing, woven ENGELS-heatinggrid®
- proven in thousands of units
- direct heat transmission via special heat conductors
   located in air flow
- no after-heating
- low air resistance: only approx. 12 Pa at 3 m/s
- available for 100 - 500 V (if necessary up to 690 V)
- superb control by low-time constants
- electric heat exchangers with the greatest heating areas
- multiple output stages
- corrosion-protected, aluminium ducts
- safe and fast electrical connection to terminal strip
- low weight
- universal installation position
- accessories:
   ENGELCONTROL® safety temperature limiter
   ENGELAIR® air flow monitor
   ENGELTHERM® electronic temperature regulator
   ENGELTHERM®-ETDL temperature control units
   ENGELTHYROTEMP TRS temperature control system
