Electronic air flow monitors of the new generation
Comprehensive system with single sensor
Safety with intelligent technology
Comprehensive system with single sensor
Safety with intelligent technology
Air flow monitors serve as monitoring systems for air and non-aggressive gasses in heating, air conditioning and ventilating systems, e.g. for heat exchangers, units and components, filters, etc., for registering and electrically signalling absent or deficient nominal air quantity. Especially in conjunction with electric air heaters, air flow monitoring provides important additional safety.

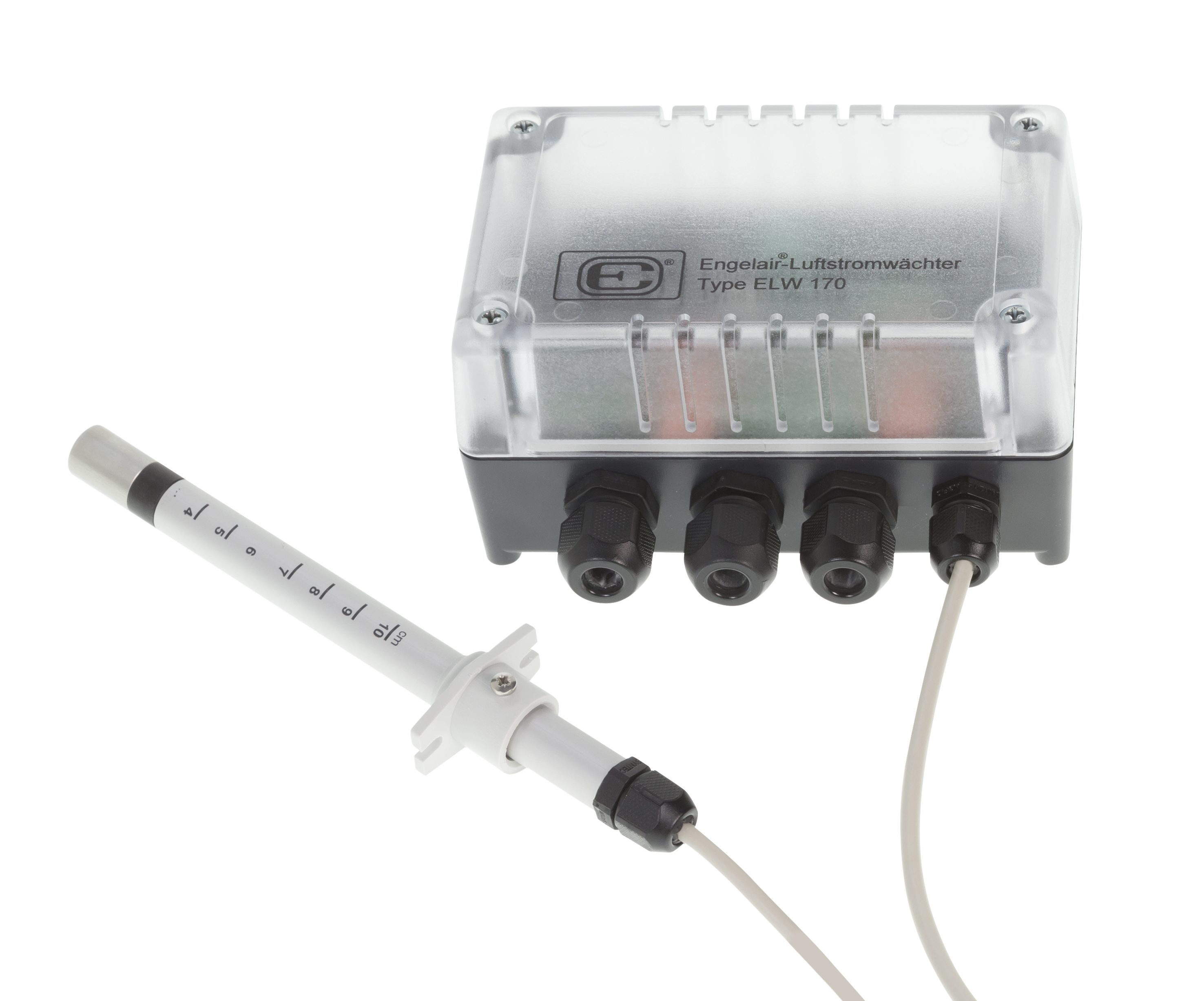

| ENGELAIR® - Air Flow Monitor Type ELW 170 Electronic wind vane relay for installing (surface) in the measurement point area. Continuous switchpoint adjust- ment from 0.2 to 10 m/s. To be used without an additional time lag relay. Operating voltage: 230 VAC (24 V AC/DC) * Regulation DIN VDE 0100-420 A. 424.14 (Oct. 2019) * Regulation VOB 3.2.3.3. / DIN 18379 (Sept. 2019) * Regulation acc. to IEC 60 364-4-42: 2010 + A1:2014 * Regulation acc. to VDI 3803-4.4.5. (2015) This appliance meets the requirements of EN 50081-1 and EN 50082-2 for unconditional use in industrial and re- sidential areas.  pdf |
 |
